Medium & Heavy Wall Busbar Tubing
Power Distribution System Applications.

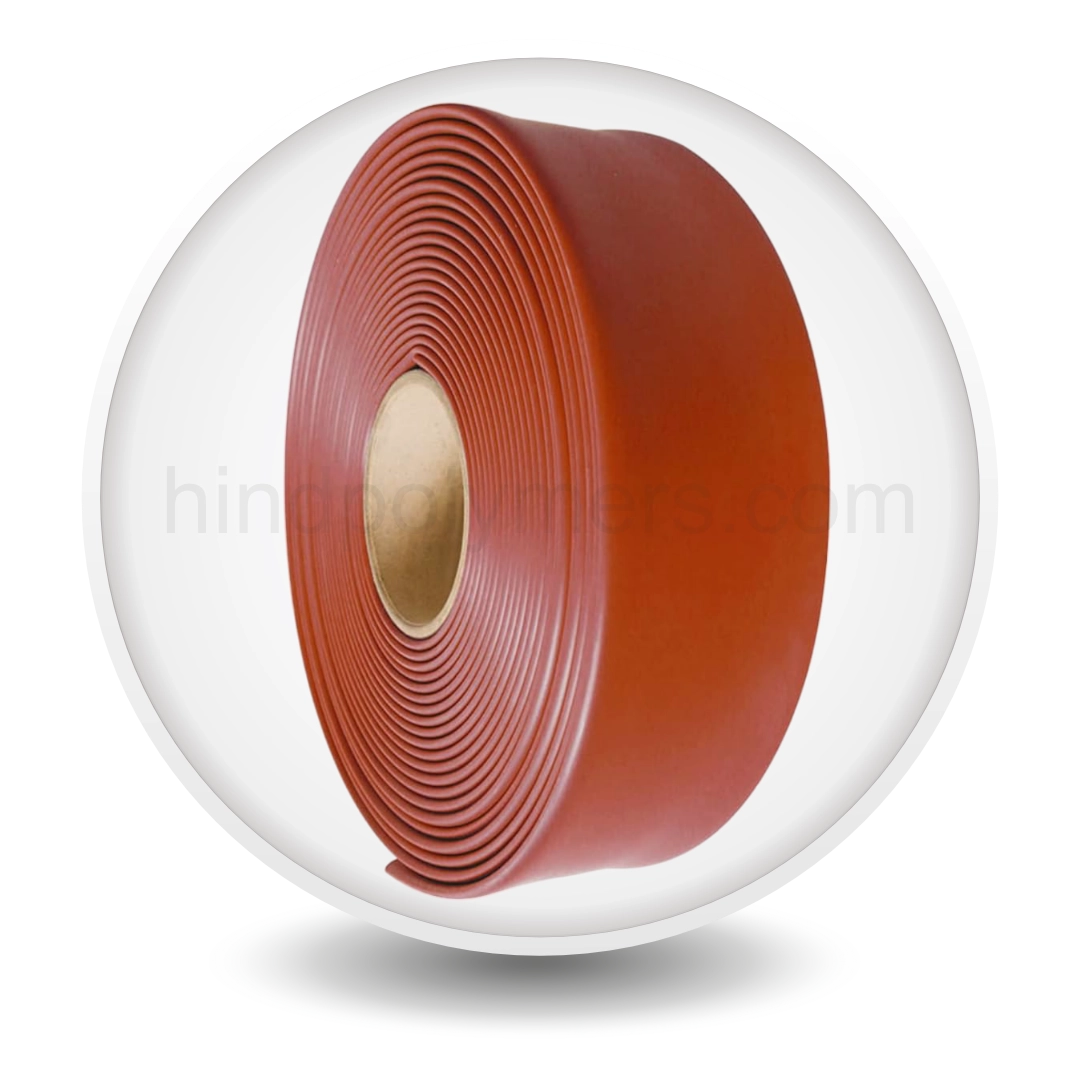

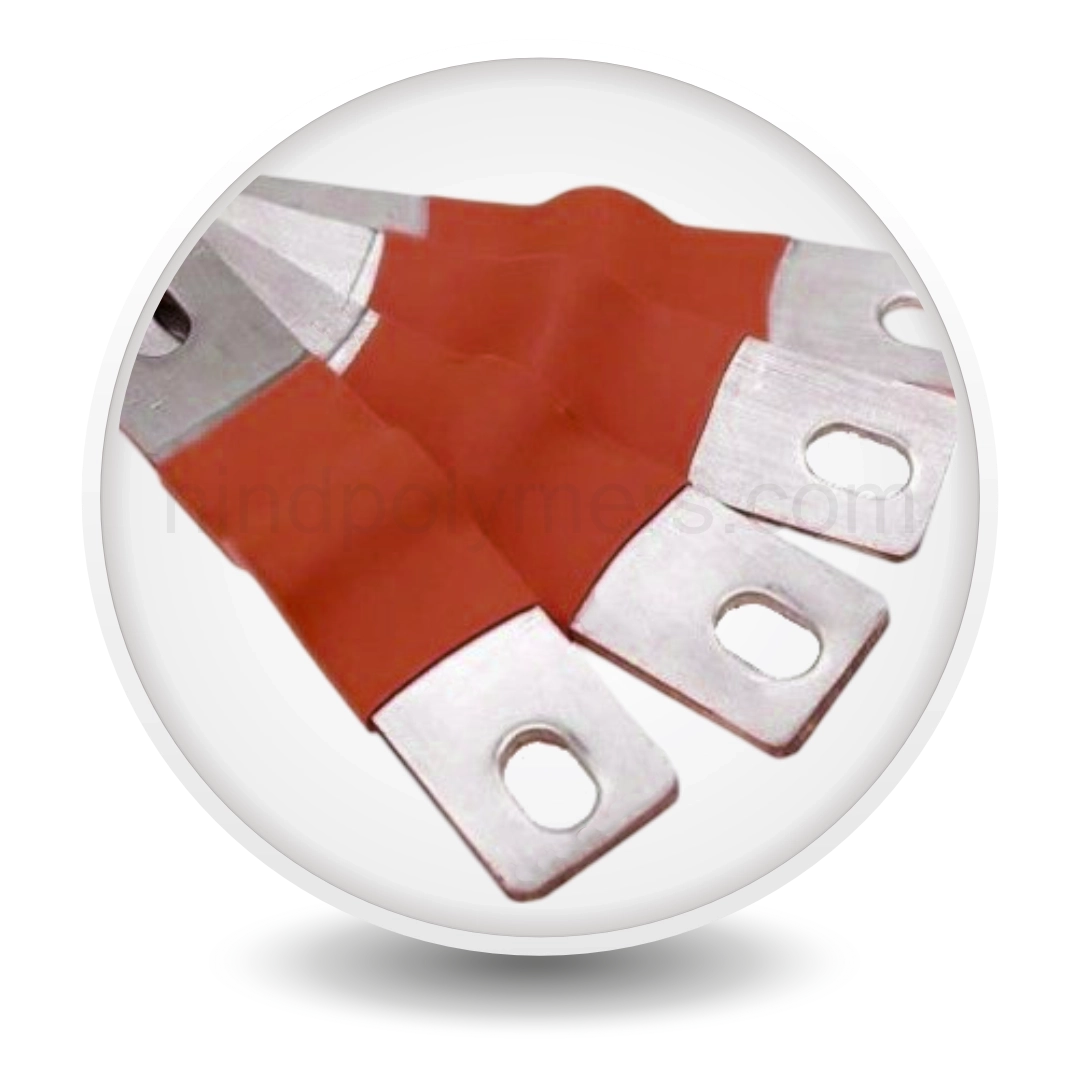

Hind Polymers offer Transeal / Hongshang medium and heavy wall busbar insulation tubing engineered to deliver superior electrical insulation and mechanical protection for busbars in power distribution systems. Made from thermally stabilized, cross-linked, non-tracking and weather-resistant polyolefin, these tubes feature a nominal shrink ratio of 2.5:1, ensuring a snug fit and reliable performance. They effectively insulate copper and aluminum busbars, preventing flashovers and unintended discharges, while their robust walls enhance thermal management and mitigate the risk of short circuits, making them vital for high-current applications in industrial and commercial environments.
Medium Wall Busbar Tube Sizes
| Tube Size |
Diameter (mm) Supplied |
Diameter (mm) Recovered |
Thickness (mm) Recovered |
|---|---|---|---|
| 15/6 | 15 | 6 | 2.0 |
| 19/6 | 19 | 6 | 2.0 |
| 30/12 | 30 | 12 | 2.3 |
| 40/16 | 40 | 16 | 2.5 |
| 50/20 | 50 | 20 | 2.5 |
| 65/25 | 65 | 25 | 2.6 |
| 75/30 | 75 | 30 | 2.6 |
| 85/30 | 85 | 30 | 2.6 |
| 100/40 | 100 | 40 | 2.8 |
| 120/50 | 120 | 50 | 2.8 |
| 150/60 | 150 | 60 | 3.3 |
| 205/75 | 205 | 75 | 3.8 |
| 235/75 | 235 | 75 | 3.8 |
Heavy Wall Busbar Tube Sizes
| Tube Size |
Diameter (mm) Supplied |
Diameter (mm) Recovered |
Thickness (mm) Recovered |
|---|---|---|---|
| 25/10 | 25 | 10 | 4.0 |
| 40/16 | 40 | 16 | 4.0 |
| 75/25 | 75 | 25 | 4.0 |
| 100/40 | 100 | 40 | 4.1 |
| 120/40 | 120 | 40 | 4.1 |
| 150/60 | 150 | 60 | 4.1 |
| 180/75 | 180 | 75 | 4.1 |
Medium & Heavy Wall Tube Properties
| Test Parameter |
Test Method |
Test Value |
|---|---|---|
| Tensile Strength | ASTM D2671 | 12 Mpa min. |
| Tensile Strength after Aging at 120°C for 168 Hours | ASTM D2671 | 10 Mpa min. |
| Ultimate Elongation | ASTM D 2671 | 400 % min. |
| Ultimate Elongation after Aging at 120°C for 168 Hours | ASTM D2671 | 300 % min. |
| Density | ASTM D792 | 1.2~1.3 g/cm3 |
| Dielectric Strength | ASTM D60243 | 12 KV/mm(3mm) min. |
| Volume Resistivity | IEC 93 | 1012 Ω-cm min. |
| Flammability | IEC 60684-2 Method C | 60 sec max. |
| Low Temperature flexibility -40°C/4 Hours | ASTM D2671 Proc. C | No Cracking |
| Permitivity | IEC 60250 | 5 max. |
Medium & Heavy Wall Tube Specifications
| Parameter | Value |
|---|---|
| Medium Wall Tubing Width | 15/6 to 235/75 |
| Heavy Wall Tubing Width | 25/10 to 180/75 |
| Thickness after Recovery | Medium Wall 2 mm to 3.8 mm Heavy Wall 3.9 mm to 4.1 mm |
| Shrink Ratio | 2.5 : 1 |
| Application | Upto 36 KV |
| Minimum Full Recovery Temperature | 120°C |
