Busbar Shrink Sleeves
Control Panels, Switch Gears and other Electrical Insulation Applications.
Hind Polymers busbar sleeves are RoHS2 Compliant and are free of Lead, Cadmium, Mercury, Hexavalent Chromium, Polybrominated biphenyl, Polybrominated diphenyl ethers and comply with Restriction of Hazardous Substances (RoHS) specifications as per RoHS2 Directive 2011/65/EU certified by Centre for Materials for Electronics Technology (C-MET).
Hind Polymers busbar shrink sleeves are flexible and flame retardant Polyvinyl Chloride tubing used for electrical insulation and offers excellent mechanical strength, chemical resistance and heat dissipation properties for control panel boards, switch-gears, distribution boards, etc. The busbar sleeves are designed for insulating copper, brass and aluminium busbars (rectangular, square and round). We supply busbar grade shrink sleeves in various sizes and different colors which not only helps in protecting the busbars but also helps in easy identification.
Busbar Sleeve Width for Compatible Busbar Sizes
| Sleeve Width (mm) |
Compatible Busbar Sizes (mm) |
|---|---|
| 17 | 6x6, 8x4, 9x3, 10x3 |
| 20 | 9x6, 12x3 |
| 25 | 12x6, 15x3 |
| 30 | 16x3, 16x6, 18x6, 20x3 |
| 35 | 20x6, 25x3 |
| 41 | 25x6, 25x9, 25x10 |
| 48 | 25x12, 30x6, 30x10 |
| 55 | 30x12, 36x6, 38x6 |
| 61 | 36x9, 38x9, 38x12, 40x6, 40x10 |
| 73 | 50x6 |
| 81 | 50x10, 50x12 |
| 85 | 60x6, 60x10 |
| 93 | 60x12, 75x6 |
| 103 | 75x9, 75x12, 80x6 |
| 110 | 80x10, 80x12, 90X6, 90X12 |
| 128 | 100x6, 100x10 |
| 140 | 100x12 |
| 150 | 120x6, 120x10, 120x12 |
| 170 | 125x6, 125x10, 125x12 |
| 190 | 150x6, 150x10, 150x12 |
| 210 | 175x6, 175x10, 175x12 |
| 230 | 200x6, 200x10, 200x12 |
Busbar Sleeve Properties
| Voltage Withstanding | 11 KV |
| Dielectric Strength | 45 KV/mm |
| Breakdown Voltage(500 Volts/Sec) | 20 KV |
| Ultimate Elongation | > 200 % |
| Tensile Strength | > 600 Kg/Cm 2 (> 60 MPa) |
| Insulation Resistance | 12x1015 Ohms Cm (at 500 V DC) |
| Recommended Shrink Temp. | 100°-140° Centigrade |
| Continuous Operating Temp. | Upto 105° Centigrade |
| Fire Retardation | Self extinguishing, Non flammable |
| Corrosion | Non Corrosive (Resistant to acid, alkali & oil) |
Busbar Sleeve Specifications
| Width | 25 mm to 300 mm |
| Roll Length | 50 / 100 Meters |
| Thickness | 160 to 250 microns (0.16 mm to 0.25 mm) |
| Shrink Ratio | 40% - 50% Widthwise (Transverse Direction) 10% - 15% Lengthwise (Machine Direction) |
| Type | Opaque |
| Color | Red, Blue, Yellow, Black, Green |
Busbar Insulation Sleeves
Earthing Fin Sleeves

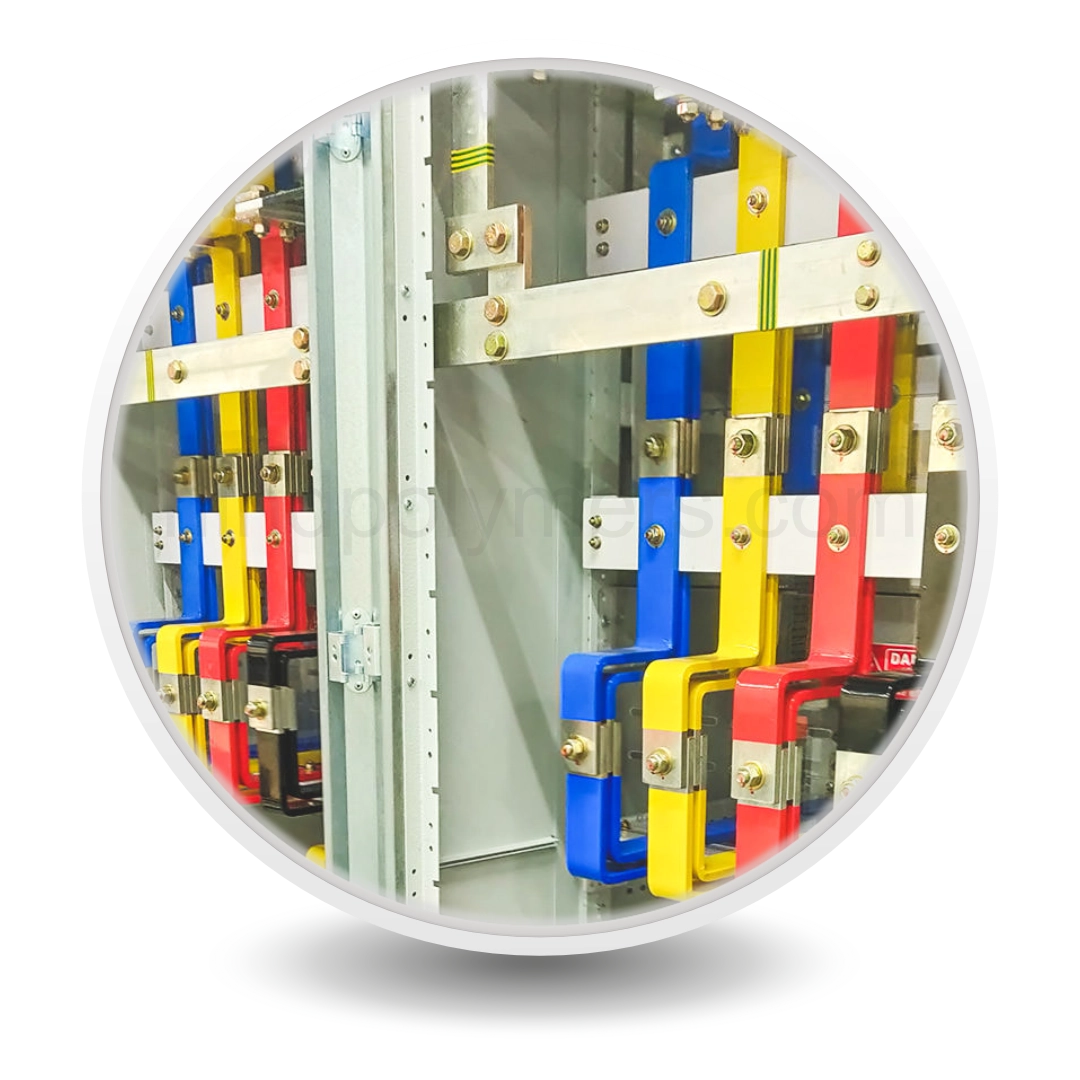

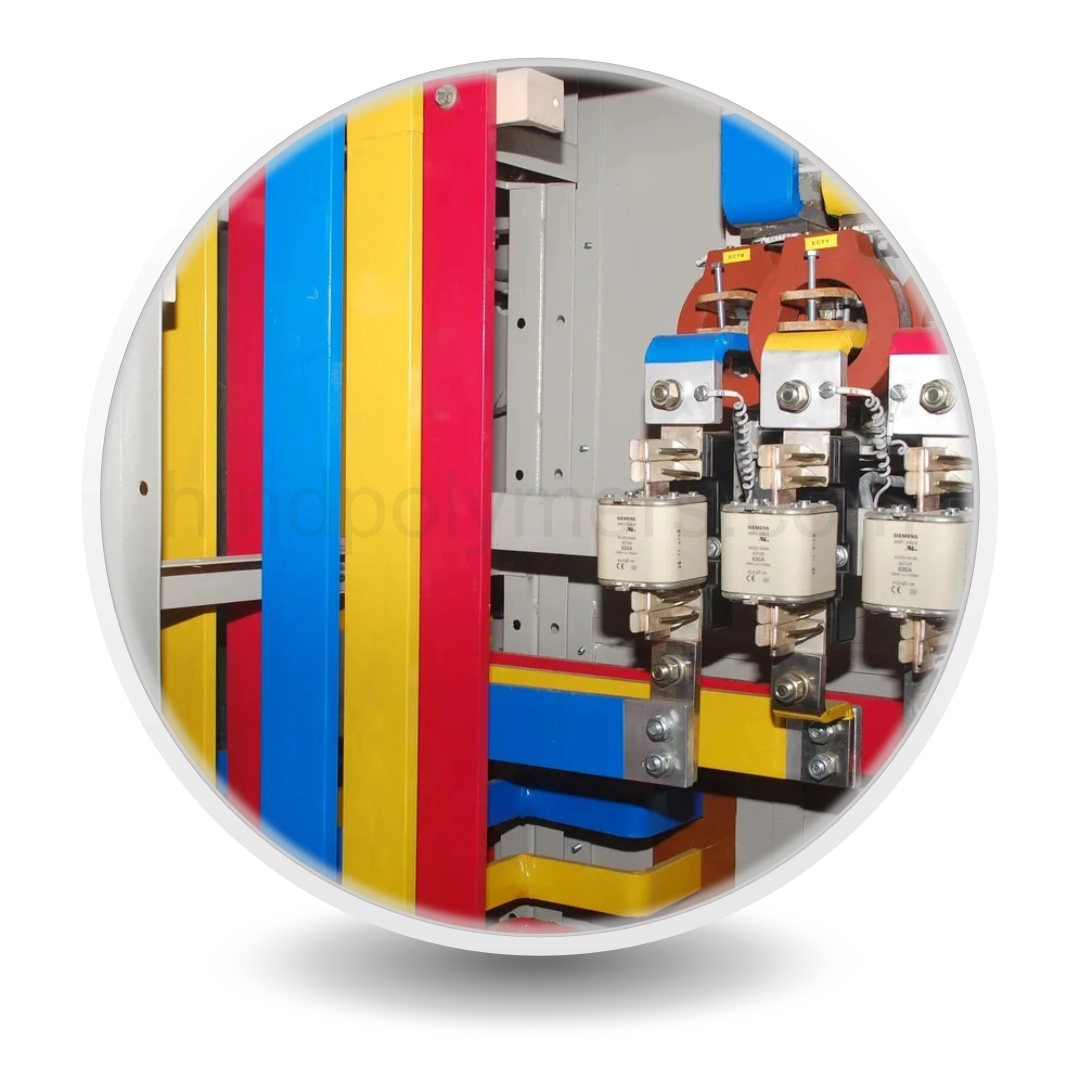

Busbar Sleeves Application

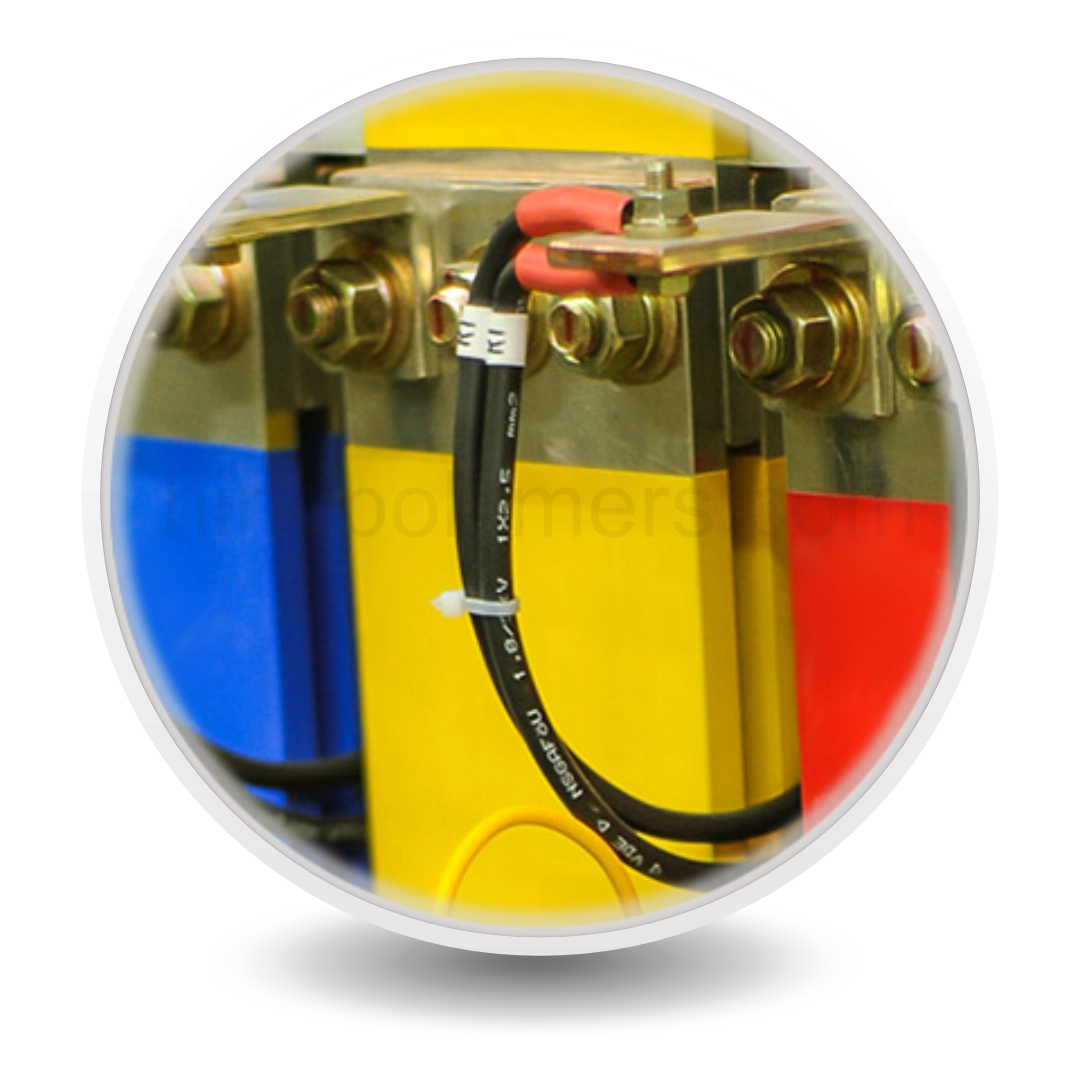

Busbar Sleeves Application
